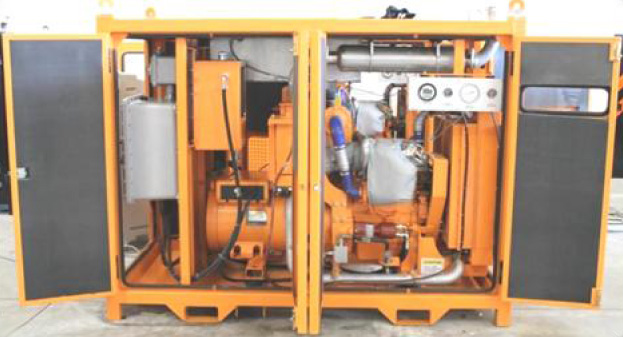

Diesel Engine Driven Generator

Express Generator Unit is designed with unique features, to supply electrical power for multipurpose use.

Equipment is built to a level of protection, for the risk of (Category 3G/Zone2/Gas Group IIB/T3).

L= 2.35m, W= 1.15m, H=1.85m. Weight 1,800kg

Features:
Easy to operate
Stationary
Compact design
Light weight
No heat, flame or spark risk

Type:
One piece unit.

Construction:
Skid fabricated in carbon steel tubing.
Offshore Transport Skid with certified four lifting pad eyes as per BS12079 /DNV 2.7-1.
Integral forklift pockets.

Optional:

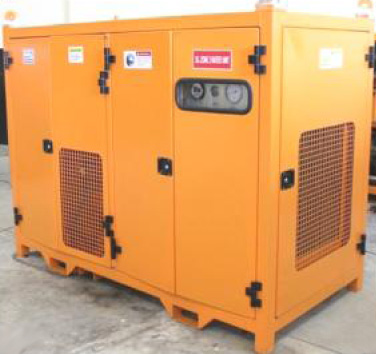

Closed canopy.

Engine:
JCB or Perkins
4 Cylinders
Cooling system water to air
Turbo charged
Engine safety built as per BS EN 1834-1

Fuel Tank:
100L

Drive:
Direct coupled to engine

Starting System:
Heavy duty spring starter
Pneumatic Starter
Hydraulic Starter c/w 10L accumulator and manual recharge
hand pump

Safety Shut Downs:
Over speed shut down.
Low engine oil pressure set at 15 psi.
High coolant temperature set at 95º C.
High exhaust gas temperature set at 200º C.

Electrical:
240/415 Volts, 60 Hz @ 1800 rpm
68kVA (Standby) and 62 kVA (Prime)

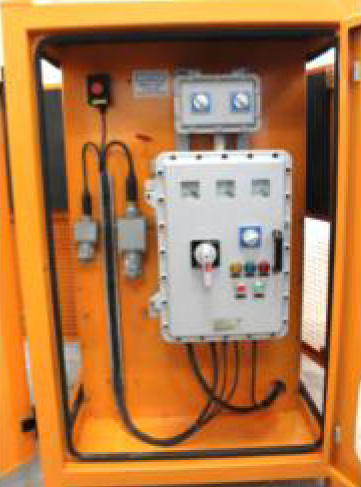

Exd distribution panel
Ex Emergency shutdown push button
Earthing cable with crocodile jaw

Power Supply:
1X60A, 3Φ, 4W/4P wall mounted socket with plug
(415V, 60Hz).
1X30A, 1Φ, 2W/3P wall mounted socket with plug
(240V, 60Hz).

Safety:
Standard protective relay system (IEC Contactors).
Overload protection.
ELCB (Earth Leakage Circuit Breaker)
MCB (Miniature Circuit Breaker)
Emergency shutdown push button

Paint:
Final product finish with sandblasted and marine paint to customer color code.

Certification: By Bureau Veritas

Options & Accessories:
Ranges 5kVA to 250kVA & 50 / 60 Hz available.
Various configurations of o/p power supply & connectors.
