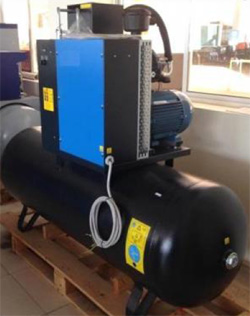

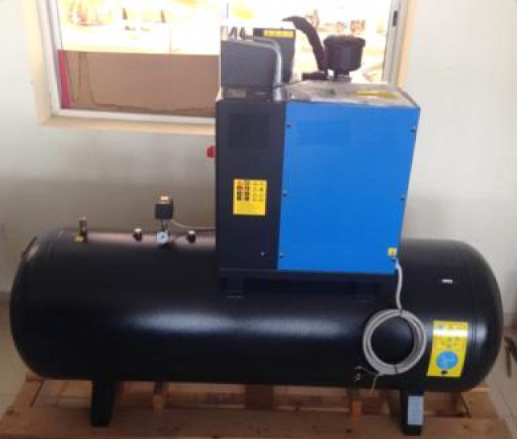

Portable Screw Air Compressors

Express Electric Compressor Units are designed with unique features, to supply air for multipurpose use intermittent duty cycle.

Equipment is built to a level of protection, for the risk of (Category 3G/Zone2/Gas Group IIB/T3).

II 3G Ex d c k IIB T3 IP55. Suitable for use in Class1, Division2, Offshore & Onshore Locations

L= 2.30m, W= 0.85m, H=1.60m. Weight 450kg,

Features:
Easy to operate
Stationary
Compact design
Light weight
No heat, flame or spark risk

Type:
One piece unit.

Construction:
Canopy fabricated in carbon steel sheet works.
Enclosure closed console with sound insulation.

Optional:

• Offshore Transport Skid with certified four lifting pad eyes
  as per BS12079 /DNV 2.7-1.
• Integral forklift pockets.
• Closed canopy.

Compressor Pump:
Belt driven oil flooded screw compressor
Cooling system oil- air.
Output: 52 cfm
Pressure: 10 bar

Air Tank:
500L

Output Connection:
Quick coupling ½”

Drive:
Belt driven

Starting System:
Direct line starter
Star delta starter

Electrical:
Exd 20hp Motor
Exd Motor starter panel.
Ex Rated power supply socket & plug
Exd Glands
MGCG Cables
Earthing cable with crocodile jaw

Power Supply:
400V / 3Φ / 50Hz

Safety:
Standard protective relay system (IEC Contactors).
Thermal Relay
MCB (Miniature Circuit Breaker)
Auto start / stop

Paint:
Final product finish with Epoxy powered coat to customer color code.

Certification: By Bureau Veritas

Options & Accessories:
Smaller & higher ranges 35 cfm and 270L tank also available.
For further information please contact sales.

---

---
