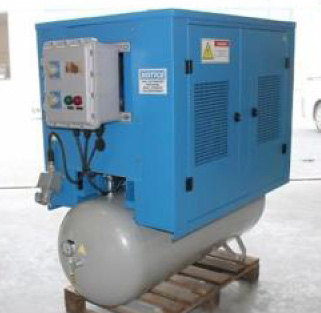

Portable Piston Air Compressors

Express Electric Compressor Units are designed with unique features, to supply air for multipurpose use intermittent duty cycle.

Equipment is built to a level of protection, for the risk of (Category 3G/Zone2/Gas Group IIB/T3).
II 3G Ex d c k IIB T3 IP55. Suitable for use in Class1, Division2, Offshore & Onshore Locations

L= 1.65m, W= 0.70 m, H=1.35m. Weight 230kg

Features:
Easy to operate
Stationary
Compact design
Light weight
No heat, flame or spark risk

Type:
One piece unit.

Construction:
Canopy fabricated in carbon steel sheet works.
Enclosure closed console with sound insulation.

Optional:

• Offshore Transport Skid with certified four lifting pad eyes as per BS12079 /DNV 2.7-1.
• Integral forklift pockets.
• Closed canopy.

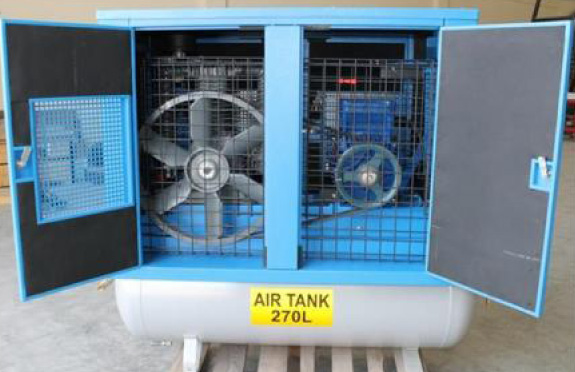

Compressor Pump:
2 Stage belt driven piston compressor
Air-cooled.
Output: 18 cfm
Pressure: 10 bar

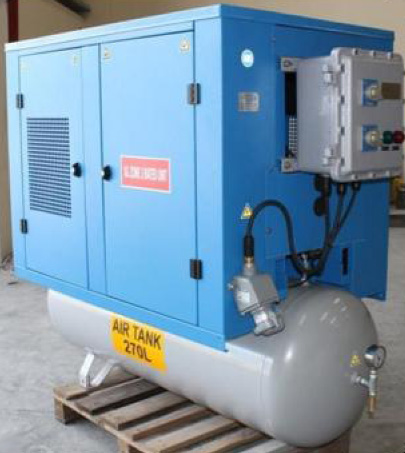

Air Tank:
270L

Output Connection:
Quick coupling ½”

Drive:
Belt driven

Starting System:
Direct line starter
Star delta starter

Electrical:
Exd 4hp Motor
Exd Motor starter panel.
Ex Rated power supply socket & plug
Exd Glands
MGCG Cables
Earthing cable with crocodile jaw

Power Supply:
400V / 3Φ / 50Hz

Safety:
Standard protective relay system (IEC Contactors).
Thermal Relay
MCB (Miniature Circuit Breaker)
Auto start / stop

Paint:
Final product finish with Epoxy powered coat to customer color code.

Certification: By Bureau Veritas

Options & Accessories:
Smaller & higher ranges 14-50 cfm and 270L & 500L tank also available.
For further information please contact sales.

---

---
