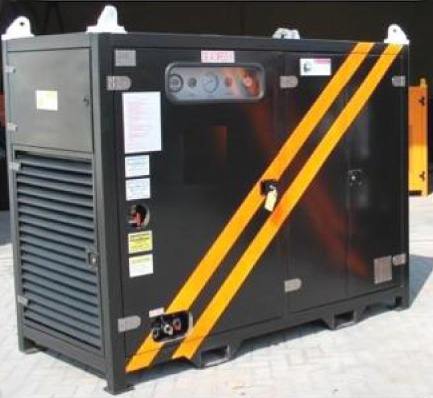

Diesel Engine Driven Screw Air Compressors

Express Diesel Engine Driven Compressor Units are designed to supply air for multipurpose use continues duty cycle.

Equipment is built to a level of protection, for the risk of (Category 3G/Zone2/Gas Group IIB/T3).

L= 2.35m, W= 1.15m, H=1.85m. Weight 1,850kg

Features:
Easy to operate
Stationary
Compact design
Light weight
No heat, flame or spark risk

Type:
One piece unit.

Construction:
Skid fabricated in carbon steel tubing.
Offshore Transport Skid with certified four lifting pad eyes as per BS12079 /DNV 2.7-1.
Integral forklift pockets.

Optional:

  • Closed canopy.
  • Receiver.

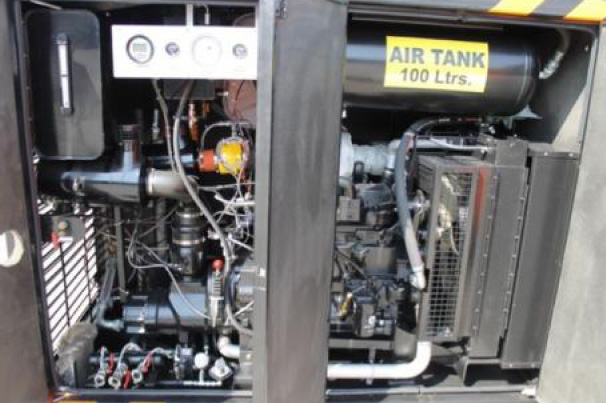

Compressor Pump:
Oil flooded screw compressor
Cooling system oil to air.
Output: 185 cfm
Pressure: 10 bar
Control: 0-100% demand

Output Connection:
Chicago coupling 2X½”

Starting System:
Hydraulic Starter c/w 10L accumulator and manual recharge hand pump.

Diesel Engine:
John Deere or Perkins
4 Cylinders
Cooling system water to air
Turbo charged
Engine safety built as per BS EN 1834-1

Fuel Tank:
100L

Drive:
Direct coupled to engine

Safety Shut Downs:
Over speed shut down.
Low engine oil pressure set at 15 psi.
High coolant temperature set at 95º C.
High exhaust gas temperature set at 200º C.

Paint:
Final product finish with sandblasted and marine paint to customer color code.

Certification: By Bureau Veritas

Options & Accessories:
Ranges 74 cfm to 700 cfm also available.
